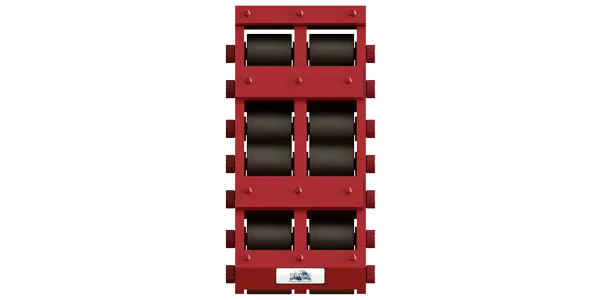

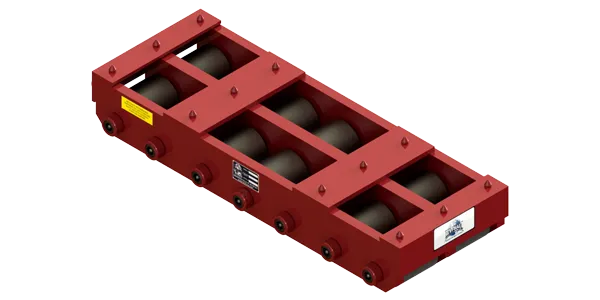

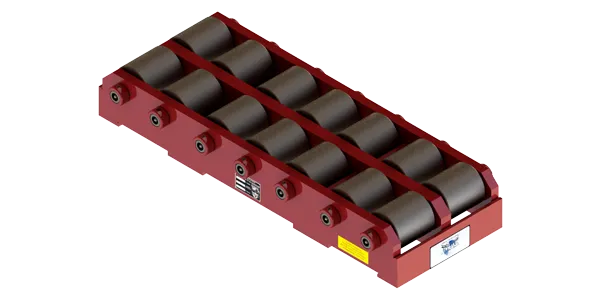

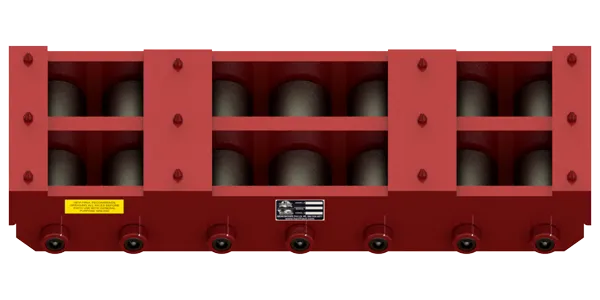

LONG STRAIGHT LINE SKATE 100 TON CAPACITY WITH STEEL ROLLERS - Part #: HTDM-200
This Hevi-Haul Skate is a low profile roller dolly designed for straight line moves with maximum load distribution, stability, and the ultimate in capacity. The HTDM-200 works great on floors with imperfections with it's ability to bridge cracks and uneven surfaces. It features a total of fourteen 3-1/4" rollers spread out over seven hardened steel axles. The frame is constructed of all steel and fully welded to take decades of abuse in the field.
Steel Rollers are interchangeable with Polyurethane Coated Rollers for applications where floor protection is key. With Polyurethane Coated Rollers in our standard configuration this model reduces to a 55 tons per Skate capacity.
| Capacity: 100 Tons (200,000 lbs.) | Roller Material: Steel |
| Length: 29-3/4" | Width: 12" |
| Height: 5-1/4" | Weight: 229 lbs. |
| Color: Hevi-Haul Red |
|
Coefficient of Friction: Load x .05 = Force Required to Move*
